[개인프로젝트/인생은선착순] 1. 개발 환경 준비

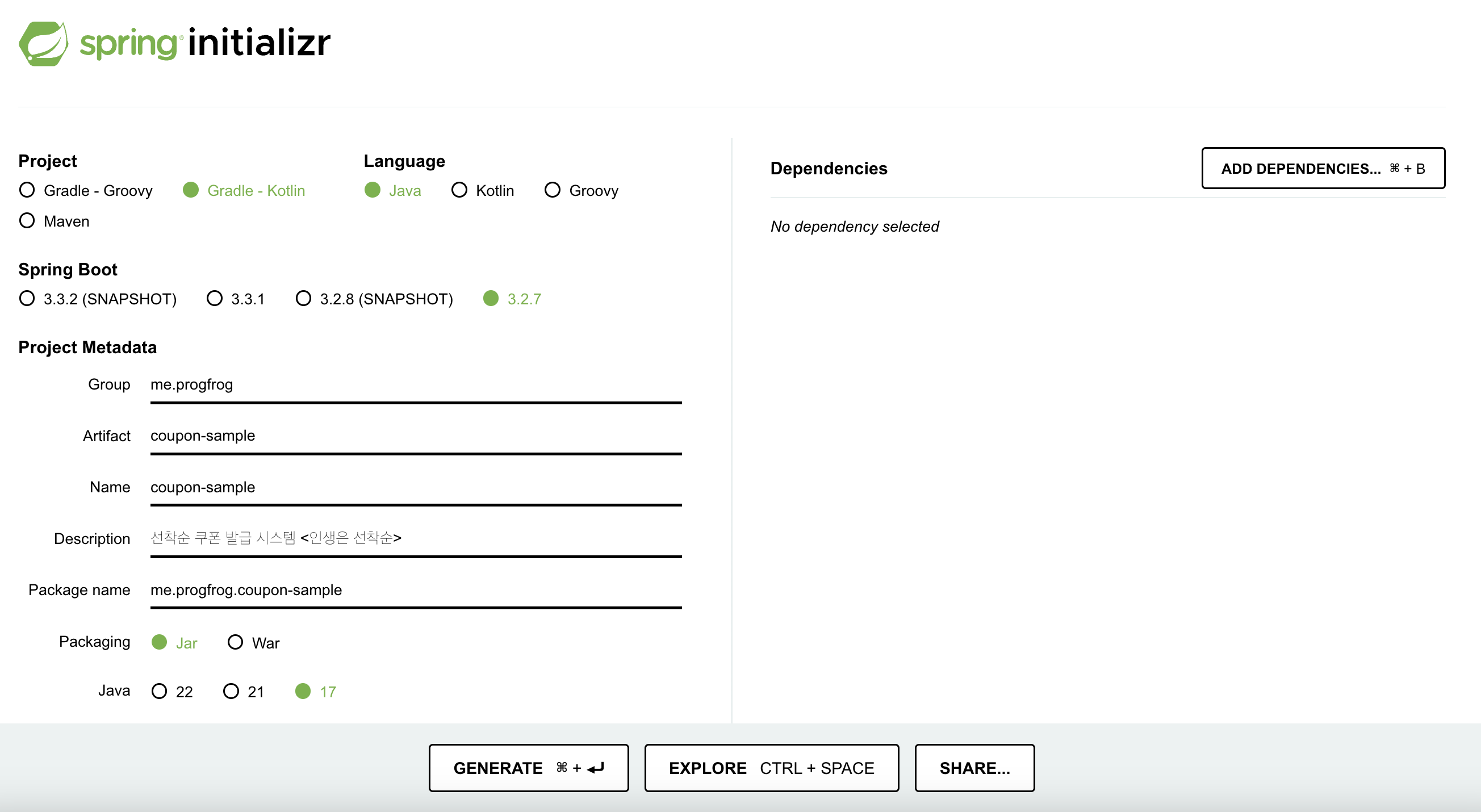

프로젝트 구성



멀티 모듈 설정

1. 루트 프로젝트 src 폴더 삭제

2. 3개 모듈 생성

• coupon-api
• coupon-consumer
• coupon-core



루트 프로젝트 setting.gradle.kts

rootProject.name = "coupon-sample"
include("coupon-api")
include("coupon-consumer")
include("coupon-core")

CouponCoreConfiguration

package me.progfrog.couponcore;

import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.context.annotation.ComponentScan;

@ComponentScan
@EnableAutoConfiguration
public class CouponCoreConfiguration {
}

• @ComponentScan
  • 이 애노테이션은 스프링 프레임워크에 의해 컴포넌트 클래스를 검색하는 데 사용
  • 지정된 패키지와 하위 패키지에서 스프링 빈으로 등록할 클래스들을 찾는다.
  • 만약 패키지를 지정하지 않으면, 이 클래스가 속한 패키지와 하위 패키지를 검색한다.
• @EnableAutoConfiguration
  • 스프링 부트 애플리케이션의 자동 구성을 활성화

CouponApiApplication

CouponApiApplication이라는 클래스는 스프링 부트 애플리케이션의 진입점(entry point)

package me.progfrog.couponapi;

import me.progfrog.couponcore.CouponCoreConfiguration;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Import;

@Import(CouponCoreConfiguration.class)
@SpringBootApplication
public class CouponApiApplication {

    public static void main(String[] args) {
        System.setProperty("spring.config.name", "application-core, application-api");
        SpringApplication.run(CouponApiApplication.class, args);
    }
}

• @Import(CouponCoreConfiguration.class)
  • CouponCoreConfiguration을 현재 스프링 애플리케이션의 설정에 추가
  • 이를 통해 CouponCoreConfiguration에서 정의한 빈들이 현재 애플리케이션 컨텍스트에 포함됨
• @SpringBootApplication
  • 스프링 부트 애플리케이션임을 나타내는 애노테이션
  • @EableAutoConfiguration, @ComponentScan을 포함하는 복합 애노테이션
• System.setProperty("spring.config.name", "application-core, application-api");
  • 스프링 부트가 애플리케이션 구성 파일을 읽어들이는 데 사용할 이름을 설정
  • 기본적으로 스프링 부트는 application.properties나 application.yml 파일을 읽지만, 이 설정을 통해 application-core와 application-consumer 이름을 가진 구성 파일을 추가로 읽어들이게 된다.
• SpringApplication.run(CouponApiApplication.class, args);
  • 스프링 부트 애플리케이션을 실행
  • 이 메서드는 내부적으로 애플리케이션 컨텍스트를 생성하고 초기화한다.

CouponConsumerApplication

package me.progfrog.counponconsumer;

import me.progfrog.couponcore.CouponCoreConfiguration;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Import;

@Import(CouponCoreConfiguration.class)
@SpringBootApplication
public class CouponConsumerApplication {

    public static void main(String[] args) {
        System.setProperty("spring.config.name", "application-core, application-consumer");
        SpringApplication.run(CouponConsumerApplication.class, args);
    }
}

3. build.gradle.kts & application.yml

루트 프로젝트

val bootJar: org.springframework.boot.gradle.tasks.bundling.BootJar by tasks

bootJar.enabled = false

plugins {
	java
	id("org.springframework.boot") version "3.1.5"
	id("io.spring.dependency-management") version "1.1.3"
}

group = "me.progfrog"
version = "0.0.1-SNAPSHOT"

java {
	sourceCompatibility = JavaVersion.VERSION_17
}

configurations {
	compileOnly {
		extendsFrom(configurations.annotationProcessor.get())
	}
}

repositories {
	mavenCentral()
}


subprojects {
	apply(plugin = "java")
	apply(plugin = "io.spring.dependency-management")
	apply(plugin = "org.springframework.boot")

	repositories {
		mavenCentral()
	}

	dependencies {
		implementation("org.springframework.boot:spring-boot-starter-data-jpa")
		implementation("org.springframework.boot:spring-boot-starter-data-redis")
		compileOnly("org.projectlombok:lombok")
		annotationProcessor("org.projectlombok:lombok")
		runtimeOnly("com.h2database:h2")
		runtimeOnly("com.mysql:mysql-connector-j")
		implementation("org.springframework.boot:spring-boot-starter")
		implementation("com.querydsl:querydsl-jpa:5.0.0:jakarta")
		implementation("org.springframework.boot:spring-boot-starter-actuator")
		implementation("io.micrometer:micrometer-registry-prometheus")
		annotationProcessor("com.querydsl:querydsl-apt:5.0.0:jakarta")
		annotationProcessor("jakarta.annotation:jakarta.annotation-api")
		annotationProcessor("jakarta.persistence:jakarta.persistence-api")
		testImplementation("org.springframework.boot:spring-boot-starter-test")
	}
}

tasks.withType<Test> {
	useJUnitPlatform()
}

coupon-api 모듈

build.gradle.kts

dependencies {
    implementation(project(":coupon-core"))
    implementation("org.springframework.boot:spring-boot-starter-web")
    implementation("org.springframework.boot:spring-boot-starter")
    testImplementation("org.springframework.boot:spring-boot-starter-test")
}

tasks.withType<Test> {
    useJUnitPlatform()
}



application-api.yml

spring:
  application:
    name: coupon-api
server:
  port: 8080

coupon-consumer 모듈

build.gradle.kts

dependencies {
    implementation(project(":coupon-core"))
    implementation("org.springframework.boot:spring-boot-starter-web")
    implementation("org.springframework.boot:spring-boot-starter")
    testImplementation("org.springframework.boot:spring-boot-starter-test")
}

tasks.withType<Test> {
    useJUnitPlatform()
}



application-consumer.yml

spring:
  application:
    name: coupon-consumer
server:
  port: 8081

coupon-core 모듈

build.gradle.kts

val bootJar: org.springframework.boot.gradle.tasks.bundling.BootJar by tasks

bootJar.enabled = false

repositories {
    mavenCentral()
}

dependencies {
    implementation("com.fasterxml.jackson.datatype:jackson-datatype-jsr310")
    implementation("com.fasterxml.jackson.core:jackson-databind")
    implementation("org.redisson:redisson-spring-boot-starter:3.16.4")
    implementation("org.springframework.boot:spring-boot-starter")
    implementation("com.github.ben-manes.caffeine:caffeine")
    testImplementation("org.springframework.boot:spring-boot-starter-test")
}

tasks.withType<Test> {
    useJUnitPlatform()
}



application-core.yml

spring:
  config:
    activate:
      on-profile: local
  datasource:
    hikari:
      jdbc-url: jdbc:mysql://localhost:3306/coupon?useUnicode=yes&characterEncoding=UTF-8&rewriteBatchedStatements=true
      driver-class-name: com.mysql.cj.jdbc.Driver
      maximum-pool-size: 10
      max-lifetime: 30000
      connection-timeout: 3000
      username: coupon
      password: 1234
  jpa:
    hibernate:
      ddl-auto: none
    show-sql: true
    properties:
      hibernate:
        format_sql: true
  data:
    redis:
      host: localhost
      port: 6380

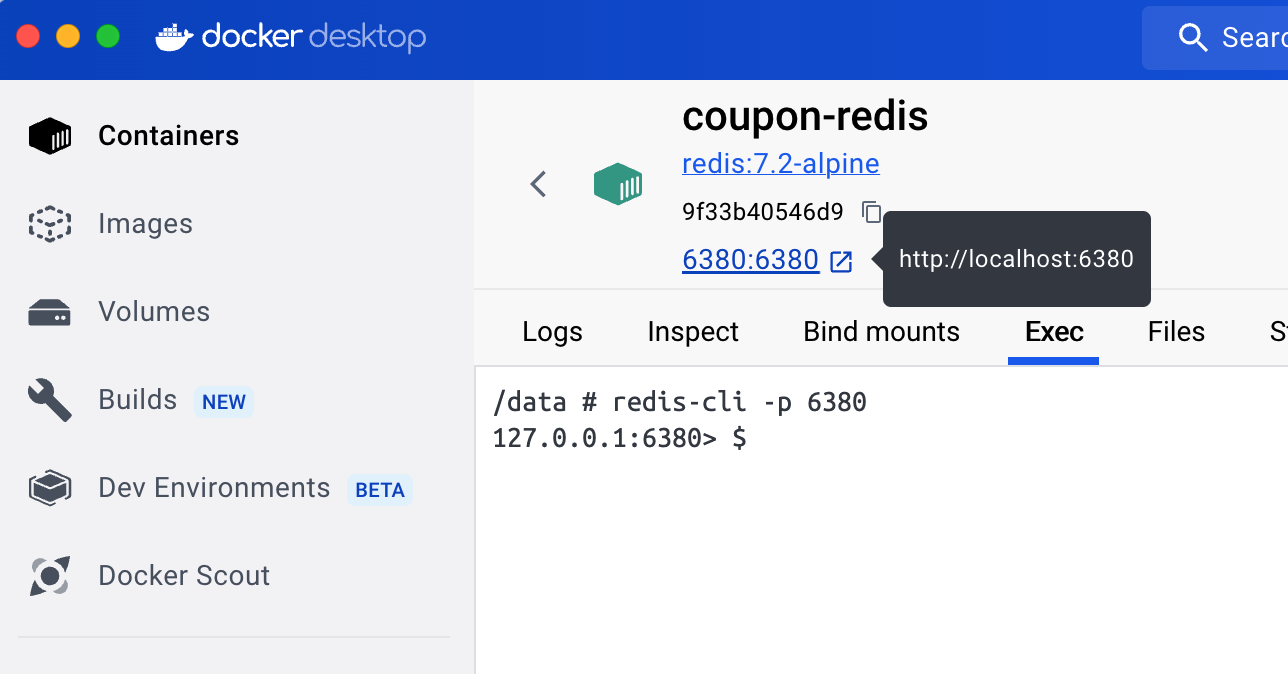

MySQL, Redis 설정

docker-compose.yml

version: '3.7'
services:
  redis:
    container_name: coupon-redis
    image: redis:7.2-alpine
    command: redis-server --port 6380
    labels:
      - "name=redis"
      - "mode=standalone"
    ports:
      - 6380:6380
  mysql:
    container_name: coupon-mysql
    image: ubuntu/mysql:edge
    command: mysqld --character-set-server=utf8mb4 --collation-server=utf8mb4_unicode_ci --explicit_defaults_for_timestamp=1
    ports:
      - 3306:3306
    environment:
      - MYSQL_DATABASE=coupon
      - MYSQL_USER=coupon
      - MYSQL_PASSWORD=1234
      - MYSQL_ROOT_PASSWORD=1234
      - TZ=UTC
    volumes:
      - ./mysql/init:/docker-entrypoint-initdb.d

docker-compose up -d



부하 테스트툴 설정

[스프링] 부하 테스트 툴 locust 사용해보기
